BY299 Datasheet PDF – 800V, 2A, Recovery Rectifier Diode

Part Number: BY299

Function: 800V, 2A, Soft Recovery Rectifier

Package: DO-201AD Type

Manufacturer: Unspecified

Image and Pinouts:

BY299 datasheet



The BY299 is 800V, 2A, Recovery Rectifier Diode.


1. High surge current capability.

2. Void-free plastic package.

3. 2.0 Ampere operation at TA= 55°C with no thermal runaway.

4. Fast switching for high efficiency.

5. Exceeds environmental standards of MIL-S-19500/228.

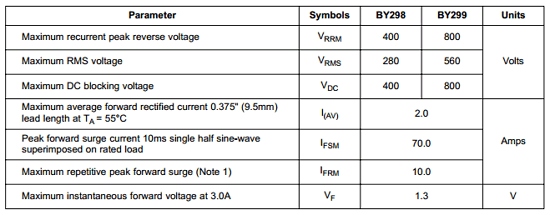

Maximum Ratings and Electrical Characteristics :


Mechanical Data :

1. Case : Moulded plastic DO-201AD.

2. Terminals : Axial leads, solderable per MIL-STD-202, Method 208.

3. Polarity : Band denotes Cathode end.

4. Mounting position : Any.

5. Weight : 0.04 ounce, 1.1 gram.

Other data sheets are available within the file: BY298


BY299 Datasheet PDF

BY299 pdf
