D2539 Datasheet PDF - 600V, 7A, NPN Transistor, 2SD2539

This is one of the transistor types.

Part Number: D2539, 2SD2539

Function: 600V, 7A, NPN Transistor

Package: TO-220 Type

Manufacturer: Toshiba


Description

This is 600V, 7A, SILICON NPN TRIPLE DIFFUSED MESA TYPE TRANSISTOR.

1. High Voltage : VCBO= 1500 V

2. Low Saturation Voltage : VCE (sat)= 5 V (Max.)

3. High Speed : tf= 0.3 µs (Typ.)

4. Bult-in Damper Type

5. Collector Metal (Fin) is Fully Covered with Mold Resin.

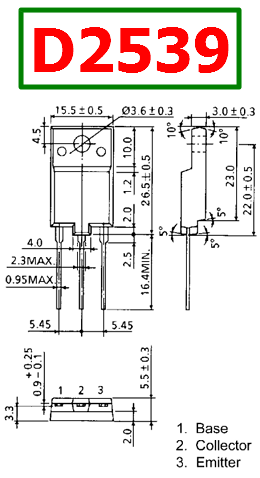

Pinout

Maximum Ratings ( Tc = 25 ºC )

1. Collector−Base Voltage : VCBO = 1500 V

2. Collector−Emitter Voltage : VCEO = 600 V

3. Emitter−Base Voltage : VEBO = 5 V

4. Base Current : IB = 3.5 A

5. Collector Power Dissipation : PC = 50 W

Equivalent Circuit

Applications:

1. Horizontal Deflection Output For Color TV
