D3N50 MOSFET – 3A, 500V, N-Ch, Transistor ( Datasheet PDF )

Part Number: D3N50, AOD3N50, AOU3N50

Function: 500V, 3A N-Channel MOSFET

Package: TO-252, D-PAK Type

Manufacturer: Alpha and Omega Semiconductor

Image:

D3N50 datasheet

Description

The AOD3N50 & AOU3N50, D3N50 have been fabricated using an advanced high voltage MOSFET process that is designed to deliver high levels of performance and robustness in popular AC-DC applications.

By providing low R DS(on) , C iss and C rss along with guaranteed avalanche capability these parts can be adopted quickly into new and existing offline powersupply designs.

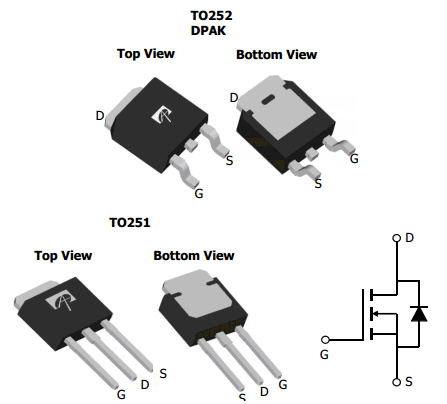

Pinouts:

components



Product Summary

1. Vds = 600V@150℃

2. ID (at VGS=10V) 2.8A

3. RDS(ON) (at VGS=10V) < 3W

D3N50 Datasheet PDF Download


D3N50 pdf

Other data sheets are available within the file: AOD3N50, AOU3N50
