FGA25N120 Datasheet PDF – 1200V, 25A, IGBT – Fairchild

The IGBT is insulated-gate bipolar transistor.

This is one of the transistor types.

Part Number: FGA25N120, FGA25N120ANTD

Function : 1200 V, 25 A NPT Trench IGBT

Package: TO-3P TYPE

Manufacturer: Fairchild

See the preview image and the PDF file for more information.



Using Fairchild’s proprietary trench design and advanced NPT technology, the 1200V NPT IGBT offers superior conduction and switching performances, high avalanche ruggedness and easy parallel operation. This device is well suited for the resonant or soft switching application such as induction heating, microwave oven.

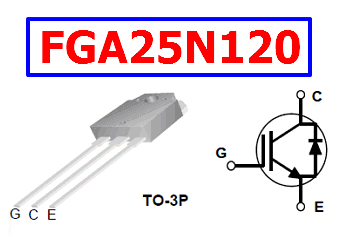

FGA25N120 Pinout




1. NPT Trench Technology, Positive Temperature Coefficient

2. Low Saturation Voltage: VCE(sat), typ = 2.0 V @ IC = 25 A and TC = 25C

3. Low Switching Loss: Eoff, typ = 0.96 mJ @ IC = 25 A and TC = 25C

4. Extremely Enhanced Avalanche Capability



1. Induction Heating, Microwave Oven


FGA25N120 Datasheet PDF
