G20N50C Datasheet – Vds = 560V, Power MOSFET – Vishay

Part Number: SiHG20N50C, Marking : G20N50C

Function : Vds = 560V, Power MOSFET

Package: TO-247AC

Manufacturer: Vishay

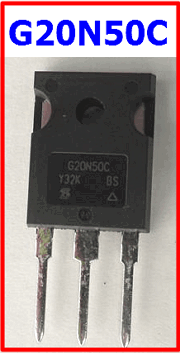

G20N50C mosfet

Description

1. Halogen-free According to IEC 61249-2-21 Definition

2. Low Figure-of-Merit Ronx Qg

3. 100 % Avalanche Tested

4. High Peak Current Capability

5. dV/dt Ruggedness

6. Improved Trr/Qrr

7. Improved Gate Charge

8. High Power Dissipations Capability

9. Compliant to RoHS Directive 2002/95/EC



Pinout

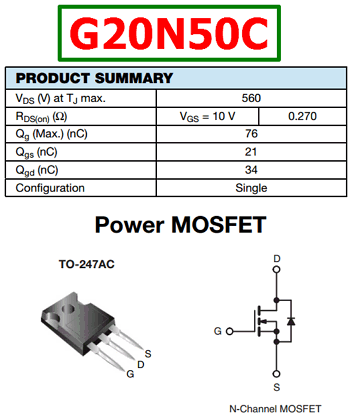

G20N50C datasheet pinout



Absolute Maximum Ratings (TC= 25 °C, unless otherwise noted)

1.Drain-Source Voltage : VDS = 500

2. Gate-Source Voltage : VGS = ± 30

3. Single Pulse Avalanche Energyb : EAS = 361 mJ

4. Maximum Power Dissipation : PD = 250 W
