HD68P05W0 Datasheet PDF – 8-bit Microcomputer ( MCU )

Part Number: HD68P05W0

Function: 8-bit Microcomputer Unit(MCU)

Package: DIP 40 Pin Type

Manufacturer: Hitachi -> Renesas Electronics

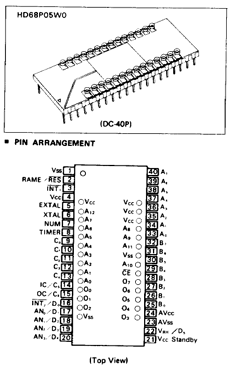

Image and Pinouts:

HD68P05W0 datasheet



The HD68P05W0 is the 8-bit Microcomputer Unit(MCU) which contains a CPU, on-chip clock, RAM, an A/D converter, I/O and two times.

It is designed for the user who needs an economical microcomputer with the proven capabilities of the HD6800-based instruction set.


1. 4K byte : HN482732A

2. 8K byte : HN482764

3. Internal 8-Bit Timer with 7-bit prescaler

4. Vectored interrups : External, Timer and Software

5. On-Chip 8 bits A/D Converter

6. On-Chip Clock Generator

7. 5 Vdc Single Supply

Other data sheets are available within the file:

HD68P01M0, HD68P01V07, HD68P05M0, HD68P05V07
