HMC832 Datasheet PDF – Voltage Controlled Oscillator

Part Number: HMC832

Function: Fractional-N PLL with Integrated VCO, 25 MHz to 3000 MHz

Package: 40-Lead QFP Type ( 6 mm × 6 mm SMT package )

Manufacturer: Analog Devices

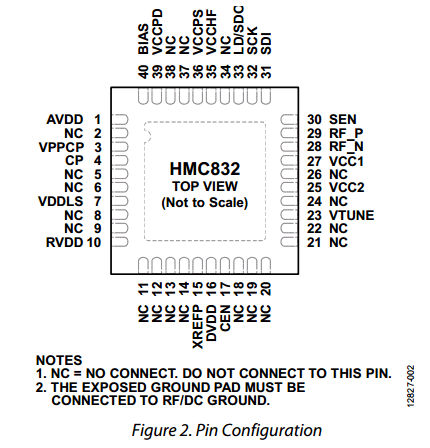

Image  :

HMC832 datasheet


The HMC832 is a 3.3 V, high performance, wideband, fractional-N, phase-locked loop (PLL) that features an integrated voltage controlled oscillator (VCO) with a fundamental frequency of 1500 MHz to 3000 MHz, and an integrated VCO output divider (divide by 1/2/4/6/…60/62), that enables the HMC832 to generate continuous frequencies from 25 MHz to 3000 MHz. The integrated phase detector (PD) and delta-sigma (Δ-Σ) modulator, capable of operating at up to 100 MHz, permit wider loop bandwidths and faster frequency tuning with excellent spectral performance.




1. RF bandwidth : 25 MHz to 3000 MHz

2. 3.3 V supply

3. Maximum phase detector rate : 100 MHz

4. Ultralow phase noise – 110 dBc/Hz in band, typical

5. Fractional figure of merit (FOM) : −226 dBc/Hz

6. 24-bit step size, resolution 3 Hz typical

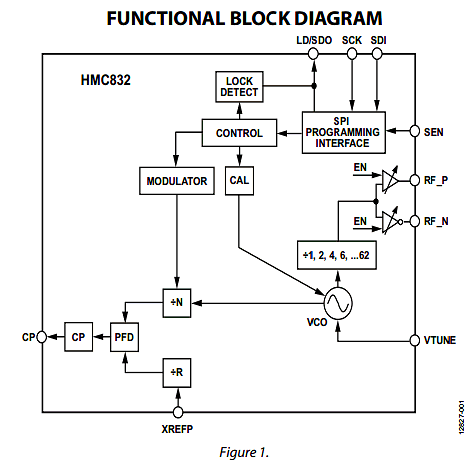

Block Diagram :



1. Cellular infrastructure

2. Microwave radio

3. WiMax, WiFi

4. Communications test equipment

5. CATV equipment

6. DDS replacement
