K1908 Datasheet PDF – 100V, 15A, N-Ch, MOSFET, Transistor

Part Number: K1908

Function: 100V, 15A, N-Channel MOSFET

Package: SMP-FD Type

Manufacturer: SANYO (Panasonic)

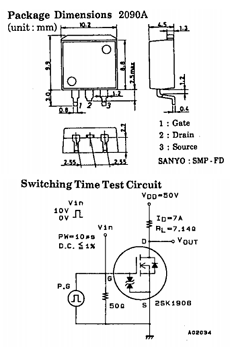

Image and Pinouts:

K1908 datasheet



Description

This is 100V, 15A, Silicon N-Channel MOSFET.

Features

1. Low ON resistance

2. Very high-speed switching

3. Low-voltage drive.

4. Surface mount type device making the following possible



Absolute Maximum Ratings (Ta = 25°C)

1. Drain to source voltage: VDSS = 100 V

2. Gate to source voltage: VGSS = ± 20 V

3. Drain current: ID = 15 A

4. Channel dissipation: Pch = 1.65 W

5. Channel temperature: Tch = 150 °C

6. Storage temperature: Tstg = -55 to +150 °C



Applications:

1. Very High-Speed Switching

K1908 Datasheet PDF Download


K1908 pdf

Other data sheets are available within the file: 2SK1908
