K50T60T Datasheet PDF – 600V, 80A, IGBT, Transistor

Part Number: K50T60T

Function: 600V, 80A, IGBT, Low Loss DuoPack

Package: TO-247 Type

Manufacturer: Infineon Technologies

Image and Pinouts:

K50T60T datasheet


This is 600V, 80A, IGBT. The IGBT is insulated-gate bipolar transistor.


1. Very low VCE(sat) 1.5V (typ.)

2. Maximum Junction Temperature 175°C

3. Short circuit withstand time 5us

4 Designed for :
– Frequency Converters
– Uninterrupted Power Supply

5 TRENCHSTOP and Fieldstop technology for 600V applications offers :
– very tight parameter distribution
– high ruggedness, temperature stable behavior
– very high switching speed

6. Positive temperature coefficient in VCE(sat)

7. Low EMI

8. Low Gate Charge

9. Very soft, fast recovery anti-parallel Emitter Controlled HE diode

10. Qualified according to JEDEC1 for target applications

11. Pb-free lead plating; RoHS compliant

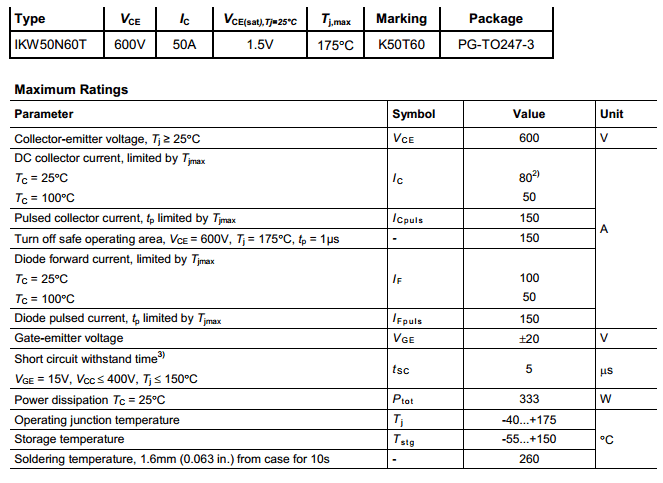

Absolute Maximum Ratings (Ta = 25°C)


Other data sheets are available within the file:

IKW50N60T, K50T60
