K7A65D Datasheet – 650V, N-ch, MOSFET – Toshiba ( PDF )

This is one of the types of MOSFETs and is a kind of transistor.

Part Number: K7A65D

Function: Silicon N-Channel MOSFET Type MOSFET ( Vdss=650V, Pd = 45W )

Package: TO-220 Type

Manufacturer: Toshiba

Image :

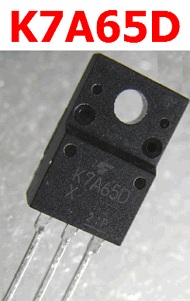

K7A65D transistor


( Marking Number : TK7A65D -> K7A65D  )

Description

Switching Regulator Applications

1.  Low drain-source ON-resistance: RDS (ON)= 0.8 Ω(typ.)
2.  High forward transfer admittance: |Yfs| = 4.5 S (typ.)
3.  Low leakage current: IDSS= 10 μA (max) (VDS= 650 V)
4.  Enhancement mode: Vth= 2.0 to 4.0 V (VDS= 10 V, ID= 1 mA)

Pinout

K7A65D datasheet pinout

Absolute Maximum Ratings

1. Drain-source voltage: VDSS = 650 V
2. Gate-source voltage: VGSS = ±30 V
3. Drain current : Id = 7 A
4. Drain power dissipation : Pd = 45 W

K7A65D Datasheet PDF




Other data sheets are available within the file: TK7A65D, TK7A650
