LM348 Datasheet – Quadruple Operational Amplifier – National

Part Number: LM348

Function: Quad 741 Operational Amplifier

Package: DIP 14 Pin

Manufacturer: National Semiconductor (Texas Instruments)

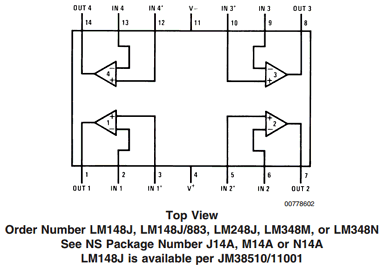

LM348 datasheet


The LM148 series is a true quad 741. It consists of four independent, high gain, internally compensated, low power operational amplifiers which have been designed to provide functional characteristics identical to those of the familiar 741 operational amplifier.

In addition the total supply current for all four amplifiers is comparable to the supply current of a single 741 type op amp. Other features include input offset currents and input bias current which are much less than those of a standard 741. Also, excellent isolation between amplifiers has been achieved by independently biasing each amplifier and using layout techniques which minimize thermal coupling.



1. 741 op amp operating characteristics
2. Class AB output stage —no crossover distortion
3. Pin compatible with the LM124
4. Overload protection for inputs and outputs
5. Low supply current drain: 0.6 mA/Amplifier
6. Low input offset voltage: 1 mV
7. Low input offset current: 4 nA
8. Low input bias current 30 nA
9. High degree of isolation between amplifiers: 120 dB
10. Gain bandwidth product
11. LM148 (unity gain): 1.0 MHz

Other data sheets are available within the file: LM148J, LM348N, LM248J, LM348, LM348M

LM348 Datasheet PDF Download
