M215H1-L03 Datasheet – 21.5 inch Color TFT-LCD Module

Part Number: M215H1-L03, M215H1

Function: 21.5 inch Color TFT-LCD Module

Active Display Area : 476.64 x 268.11 mm

Number of Pixels : 1920 x R.G.B. x 1080

Manufacturer: CHI MEI Optoelectronics

Images

M215H1-L03 TFT LCD

Description

The M215H1-L03 model is a 21.5 inch wide TFT-LCD module with a 4-CCFL Backlight Unit and a 30-pin 2ch-LVDS interface. This module supports 1920 x 1080 Full HD (16:9 wide screen) mode and displays up to 16.7 millions colors. The inverter module for the Backlight Unit is not built in.

The panel uses a TFT (thin-film transistor) technology to control the individual pixels and provide high-quality color and contrast. It has a maximum brightness of 300 nits and a contrast ratio of 1000:1, making it suitable for use in indoor display applications.

[…]

Features

1. Super wide viewing angle
2. High contrast ratio
3. Fast response time
4. Low power consumption
5. FULL HD(1920 x 1080 pixels) resolution
6. DE (Data Enable) only mode
7. LVDS (Low Voltage Differential Signaling) interface
8. RoHS compliance.
9. TCO 03 compliance.

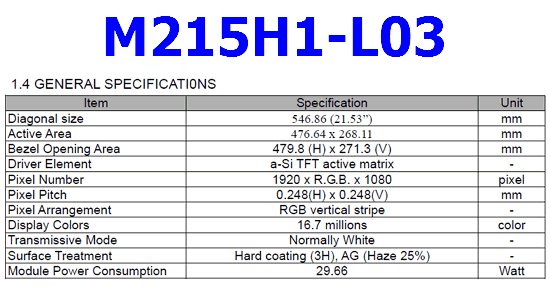

M215H1-L03 datasheet pinout

Applications

1. Workstation & desktop monitor
2.  Display terminals for AV application

Input Terminal Pin Assignment

1 RXO0- Negative LVDS differential data input. Channel O0 (odd)
2 RXO0+ Positive LVDS differential data input. Channel O0 (odd)
3 RXO1- Negative LVDS differential data input. Channel O1 (odd)
4 RXO1+ Positive LVDS differential data input. Channel O1 (odd)
5 RXO2- Negative LVDS differential data input. Channel O2 (odd)
6 RXO2+ Positive LVDS differential data input. Channel O2 (odd)
7 GND Ground
8 RXOC- Negative LVDS differential clock input. (odd)
9 RXOC+ Positive LVDS differential clock input. (odd)
10 RXO3- Negative LVDS differential data input. Channel O3(odd)
11 RXO3+ Positive LVDS differential data input. Channel O3 (odd)
12 RXE0- Negative LVDS differential data input. Channel E0 (even)
13 RXE0+ Positive LVDS differential data input. Channel E0 (even)
14 GND Ground
15 RXE1- Negative LVDS differential data input. Channel E1 (even)
16 RXE1+ Positive LVDS differential data input. Channel E1 (even)
17 GND Ground
18 RXE2- Negative LVDS differential data input. Channel E2 (even)
19 RXE2+ Positive LVDS differential data input. Channel E2 (even)
20 RXEC- Negative LVDS differential clock input. (even)
21 RXEC+ Positive LVDS differential clock input. (even)
22 RXE3- Negative LVDS differential data input. Channel E3 (even)
23 RXE3+ Positive LVDS differential data input. Channel E3 (even)
24 GND Ground
25 NC Not connection, this pin should be open.
26 NC Not connection, this pin should be open.
27 NC Not connection, this pin should be open.
28 VCC +5.0V power supply
29 VCC +5.0V power supply
30 VCC +5.0V power supply

M215H1-L03 Datasheet
