M25P40 Datasheet PDF – 4 Mbit, Serial Flash Memory – ST

Part Number: M25P40

Function: 4 Mbit, Serial Flash Memory

Package: SO8, VFQFPN8

Manufacturer: STMicroelectronics


M25P40 flash memory

Description

THIS IS 4 MBIT, LOW VOLTAGE, SERIAL FLASH MEMORY WITH 25 MHZ SPI BUS INTERFACE/

Features

1. 4 Mbit of Flash Memory

2. Page Program (up to 256 Bytes) in 1.5ms (typical)

3. Sector Erase (512 Kbit) in 2 s (typical)

4. Bulk Erase (4 Mbit) in 5 s (typical)

5. 2.7 V to 3.6 V Single Supply Voltage

6. SPI Bus Compatible Serial Interface

7. 25 MHz Clock Rate (maximum)

8. Deep Power-down Mode 1 µA (typical)

9. Electronic Signature (12h)

Pinouts:

M25P40 datasheet



Description

The M25P40 is a 4 Mbit (512K x 8) Serial Flash Memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus. The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction. The memory is organized as 8 sectors, each con taining 256 pages. Each page is 256 bytes wide. Thus, the whole memory can be viewed as consisting of 2048 pages, or 524,288 bytes. The whole memory can be erased using the Bulk Erase instruction, or a sector at a time, using the Sector Erase instruction.

Ordering Informations :

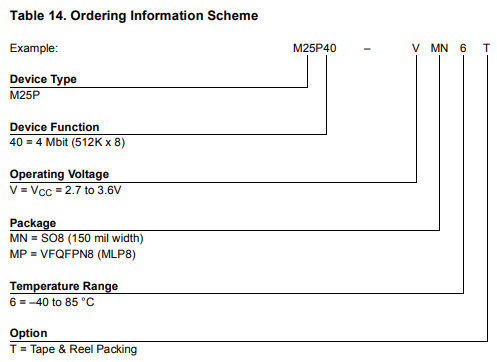

M25P40 ordering information

Other data sheets are available within the file: M25P40-V, M25P40VMP6T, M25P40–VMN6T
