MMBTA13 Datasheet PDF – 30V, 300mA, NPN Darlington Transistor

Part Number: MMBTA13

Function: 30V, 300mA, NPN Darlington Transistor.

Package: Surface Mount, SOT-23 Type

Manufacturer: Diodes Incorporated.

Image and Pinouts:

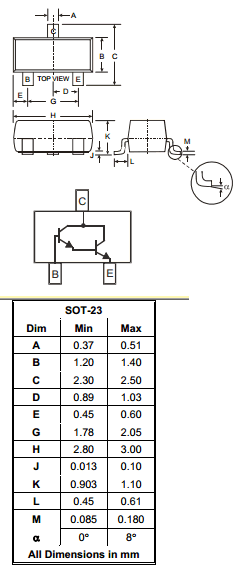

MMBTA13 datasheet



Description

This is NPN Surface mount darlington transistor.

Features

1. Epitaxial Planar Die Construction

2. Complementary PNP Types Available (MMBTA63/MMBTA64)

3. Ideal for Medium Power Amplification and Switching

4. High Current Gain

5. Lead, Halogen and Antimony Free, RoHS Compliant”Green” Device

6. Qualified to AEC-Q101 Standards for High Reliability





Mechanical Data :

1. Case : SOT-23

2. Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0

3. Moisture Sensitivity : Level 1 per J-STD-020D

4. Terminals : Solderable per MIL-STD-202, Method 208

5. Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe).

6. Weight : 0.008 grams (approximate)

Applications:

1. Ideal for medium power application and switching





MMBTA13 Datasheet PDF Download


MMBTA13 pdf

Other data sheets are available within the file: MMBTA13-7-F, MMBTA14, MMBTA14-7-F
