MMBTA92 Datasheet PDF – 300V, 500mA, PNP Transistor

Part Number: MMBTA92

Marking : K3R

Function: PNP SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Package: SOT-23 Type

Manufacturer: Diodes Incorporated.

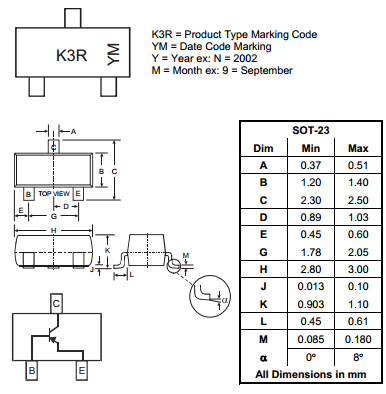

Image and Pinouts:

MMBTA92 datasheet



Description

This is a – 300V, – 500mA, PNP Transistor.

Features

1. Epitaxial Planar Die Construction

2. Complementary NPN Types Available (MMBTA42)

3. Ideal for Medium Power Amplification and Switching

4. Lead, Halogen and Antimony Free, RoHS Compliant “Green” Device

5. Qualified to AEC-Q101 Standards for High Reliability



Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage: Vcbo = – 300 V

2. Collector to Emitter Voltage: Vceo = – 300 V

3. Emitter to Base Voltage: Vebo = – 5 V

4. Collector Current: Ic = – 500 mA

5. Power Dissipation: Pd = 300 mW

6. Junction Temperature: Tj = 150°C

7. Storage Temperature: Tsg = -55 ~ +150°C



Mechanical Data :

1. Case : SOT-23

2. Case Material : Molded Plastic. UL Flammability Classification Rating 94V-0

3. Moisture Sensitivity : Level 1 per J-STD-020C

4. Terminal Connections : See Diagram

5. Terminals : Solderable per MIL-STD-202, Method 208

6. Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe).

7. Weight : 0.008 grams (approximate)



MMBTA92 Datasheet PDF Download


MMBTA92 pdf

Other data sheets are available within the file: MMBTA-92, MMBTA92-7-F
