NJM2035D Datasheet PDF – Stereo Modulator, JRC

Part Number: NJM2035D

Function: Stereo Modulator

Package: DIP 14, DMP 14 Type

Manufacturer: Japan Radio Corporation


NJM2035D datasheet



The NJM2035D is an integrated circuit used to generate a stereo composite signal and obtain switching output and 19kHz pilot signal due to two input audio signal and 38kHz X-tal and a few external CR. The NJM2035 operates at 1.5V battery typically and even at 1.2V obtains separation more than 25dB.

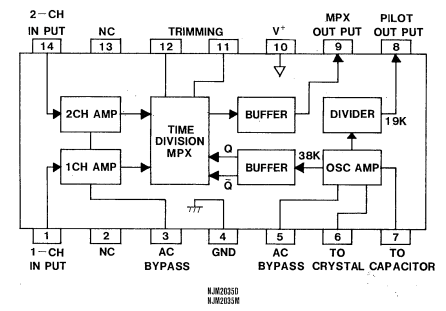

Blockdiagram and Pinouts:



1. Low Operating Voltage

2. Low Operating Current

3. High separation

NJM2035D Datasheet PDF Download

NJM2035D pdf

Other data sheets are available within the file: NJM2035, NJM2035M, NJM2035M-T1, NJM2035M-T2
