OPA241PA Datasheet PDF – microPower Operational Amplifier

Part Number: OPA241PA

Function: Single-Supply, microPower Operational Amplifier

Package: DIP 8 Pin Type

Manufacturer: Burr-Brown (Texas Instruments)

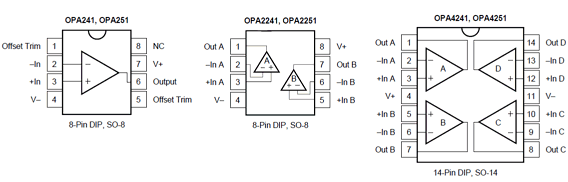

Pinouts:

OPA241PA datasheet



Description

The OPA241PA, OPA241 series and OPA251 series are specifically designed for battery powered, portable applications. In addition to very low power consumption (25µA), these amplifiers feature low offset voltage, rail-to-rail output swing, high common-mode rejection, and high open-loop gain. . The input common-mode voltage range extends 200mV below the negative supply-ideal for single-supply applications.

Features

1. MicroPOWER: IQ = 25mA

2. SINGLE-SUPPLY OPERATION

3. RAIL-TO-RAIL OUTPUT (within 50mV)

4. WIDE SUPPLY RANGE :
(1) Single Supply: +2.7V to +36V
(2) Dual Supply: ±1.35V to ±18V

5. LOW OFFSET VOLTAGE: ±250mV max

6. HIGH COMMON-MODE REJECTION: 124dB

7. HIGH OPEN-LOOP GAIN: 128dB

8. SINGLE, DUAL, AND QUAD



OPA241PA Datasheet PDF Download


OPA241PA pdf

Other data sheets are available within the file:

OPA2241, OPA2241UA, OPA2241UA/2K5, OPA2251PA, OPA2251UA
