P30NF10 Datasheet – N-ch, 100V, 35A, Power MOSFET – ST

Part Number: STP30NF10, Marking : P30NF10

Function: N-channel, 100V, 35A, Low gate charge STripFET Power MOSFET

Package: TO-220 Type

Manufacturer: STMicroelectronics

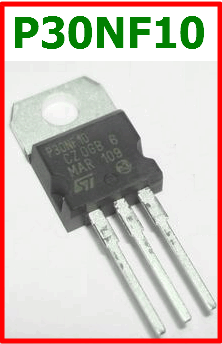

P30NF10 mosfet

Description

The P30NF10 is N-channel, 100V, 35A, Power MOSFET.

This Power MOSFET is the latest development of STMicroelectronis unique “Single Feature Size” strip-based process. The resulting transistor shows extremely high packing density for low on resistance, rugged avalanche characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility.



Features

1. Exceptional dv/dt capability

2. 100% avalanche tested

3. Application oriented characterization

4. Switching application



Pinout:

P30NF10 datasheet pinout

Absolute Maximum Ratings (Ta = 25°C)

1. Drain to source Voltage: VDSS = 100 V
2. Gate to source Voltage: VGSS = ± 20 V
3. Drain current: ID = 35 A
4. Total Dissipation: Ptot = 115 W
5. Channel temperature: Tch = 175 °C
6. Storage temperature: Tstg = -55 to +175 °C

Applications:

1. HIGH-EFFICIENCY DC-DC CONVERTERS
2. UPS AND MOTOR CONTROL

P30NF10 Datasheet PDF

P30NF10 pdf
