RG1J Datasheet PDF – 600V, 1A, Fast Recovery Rectifier

Part Number: RG1J ( RG1A THRU RG1M )

Function: GLASS PASSIVATED FAST SWITCHING RECTIFIER

Package: DO-204AP Type

Manufacturer: Vishay Semiconductor, General Semiconductor

Image and pinout
RG1J datasheet

Description

1. High temperature metallurgically bonded construction

2. Hermetically sealed package

3. Glass passivated cavity-free junction

4. 1.0 Ampere operation at TA=55°C with no thermal runaway

5. Typical IRless than 0.1µA

6. Capable of meeting environmental standards of MIL-S-19500

7. Fast switching for high efficiency

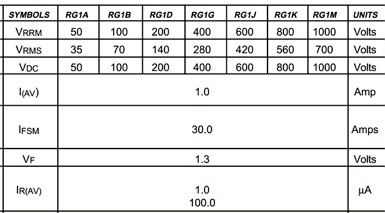

components

MECHANICAL DATA

1. Case : JEDEC DO204AP solid glass body
2. Terminals : Solder plated axial leads, solderable per MIL-STD-750, Method 2026
3. Polarity : Color band denotes cathode end
4. Mounting Position : Any
5. Weight : 0.02 ounce, 0.56 gram

Other data sheets are available within the file: RG1A, RG1B, RG1D, RG1G, RG1J
