RN5VS27AC-TR Datasheet PDF – Low Voltage Detector

Part Number: RN5VS27AC-TR, RN5VS SERIES

Function:  Low Voltage Detector

Package: SOT-23-5 Type

Manufacturer: RICOH Co.,Ltd.

Image and Pinouts:

RN5VS27AC-TR datasheet

Description

The RN5VS27AC-TR Series are voltage detector ICs with high detector threshold accuracy and ultra-low supply current by CMOS process, which can be operated at an extremely low voltage and is used, for instance, for system reset. Each of these ICs consists of a voltage reference unit, a comparator, resistors for voltage detection, an output driver and a hysteresis circuit. The detector threshold is fixed with high accuracy.

The RN5VS Series are operable by a lower voltage than that for the R×5VL Series, and can be driven by a single battery. Two output types, Nch open drain type and CMOS type, are available. Since the package for these ICs are SOT-23-5 (Mini-mold) package, high density mounting of the ICs on board is possible.

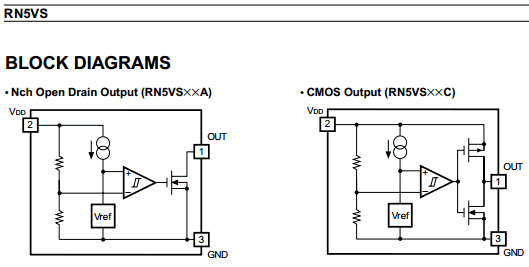

Block Diagram :

components

Features

1. Ultra-low Supply Current : TYP. 0.8μA (VDD=1.5V)

2. Broad Operating Voltage Range : 0.7V to 10.0V (Topt =25°C)

3. Two Output Types : Nch Open Drain and CMOS

Applications:

1. CPU & Logic Circuit Reset

2. Battery Checker

3. Window Comparator

4. Wave Shaping Circuit

5. Battery Back-Up Circuit

6. Power Failure Detector



Other data sheets are available within the file:

RN5VS09A, RN5VS09C, RN5VS10A, RN5VS10C, RN5VS11A, RN5VS11C,

RN5VS12A, RN5VS12C, RN5VS13A, RN5VS13C, RN5VS27A, RN5VS27C
