SBT42F PDF Datasheet – 300V, 500mA, NPN Transistor

Part Number: SBT42F

Marking : M1A

Function: 300V, 500mA, NPN Silicon Transistor

Package: SOT-23F Type

Manufacturer: AUK corp

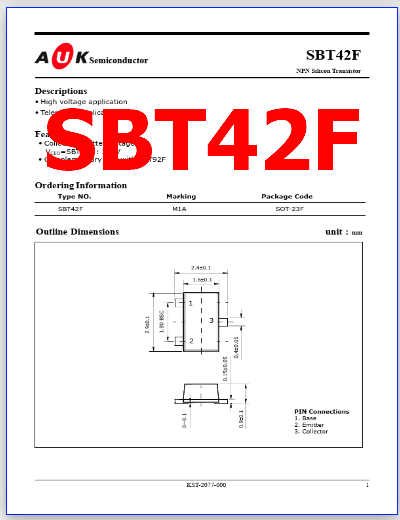

Images:SBT42F pdf pinout

Description

SBT42F is NPN Silicon Transistor. A NPN transistor is a type of bipolar junction transistor (BJT) that consists of two n-type semiconductor materials separated by a single p-type material.

The NPN transistor is used to amplify or switch electronic signals and is widely used in many electronic circuits. It works by controlling the current flow between the collector and emitter terminals through the base terminal.

When a small current is applied to the base, it controls a much larger current between the collector and emitter, making the NPN transistor an effective amplifier or switch.

Characteristics:

1. Current Amplification: NPN transistors are designed to amplify electrical current, and can be used in a wide range of electronic applications such as amplifiers, switches, and oscillators.

2. Forward Biased: In order to operate, the base-emitter junction of an NPN transistor must be forward biased, meaning that the base must be connected to a positive voltage relative to the emitter.

3. High Input Impedance: NPN transistors have a high input impedance, which means that they are less likely to draw current from the input source, and are therefore less likely to cause a drop in voltage across the source.



Features

• Collector-Emitter voltage VCEO=SBT42F : 300V

• Complementary pair with SBT92F



SBT42F datasheet transistor

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage: Vcbo = 300 V

2. Collector to Emitter Voltage: Vceo = 300 V

3. Emitter to Base Voltage: Vebo = 6 V

4. Collector Current: Ic = 500 mA

5. Collector Dissipation : Pc = 350 mW

6. Junction Temperature: Tj = 150°C

7. Storage Temperature: Tsg = -55 ~ +150°C



Applications:

• High voltage application

• Telephone application
