T3512H Datasheet PDF – 12kV, High Voltage Diode

Part Number: T3512H

Function: 12kV, High Voltage Diode

Package: Lead type

Manufacturer: SiPower

Image :
T3512H Image

Description

This is High Voltage Diode Rectifier For Microwave Ovens.

Marking Code :

Type : 2CL3509H, Code :  T3509H
Type : 2CL3512H, Code :  T3512H

Applications:

Rectification for high voltage power supply of magnetron in Micro wave oven and others

Pinouts:

2CL3512H 2CL3509H

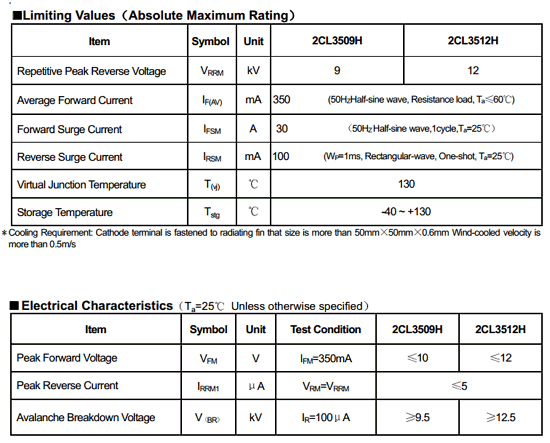

Features

1. IF (AV) = 350mA

2. V RRM : 12kV

3. High reliability



Datasheet

T3512H Datasheet PDF

T3512H pdf

Other data sheets are available within the file: 2CL3509H, 2CL3512H, T3509H
