AMS4040 Datasheet PDF – Micropower Shunt Voltage Reference

Posted on by pinout

Part Number: AMS4040

Function: Micropower Shunt Voltage Reference

Package: TO-92, SO-8, SOT-89 and SOT-23 Type

Manufacturer: Advanced Monolithic Systems Inc

Pinouts:

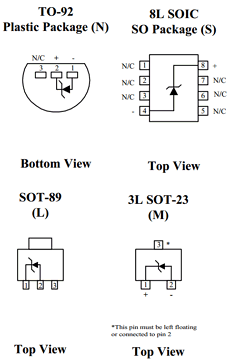

AMS4040 datasheet

Description

The AMS4040 is a two-terminal micropower band-gap voltage reference diode featuring a very low dynamic impedance and good temperature coefficient, operating over a 250µA to 100mA current range. On-chip trimming is used to provide tight voltage tolerance. Since the AMS4040 band-gap reference uses only transistors and resistors, low noise and good long term stability result. The wide dynamic operating range allows its use with widely varying supplies with excellent regulation. The extremely low power drain of the AMS4040 makes these reference diodes useful for micropower circuitry. These voltage references can be used to make portable meters, regulators or general purpose analog circuitry with battery life approaching shelf life. The AMS4040 is operational in the full industrial temperature range of -40°C to +85°.

AMS4040 shunt regulator

Features

1. Tight Output Voltage Tolerance
2. Low Output Noise
3. Operating Current 250µA to 100mA
4. Low Dynamic Impedance
5. Low Temperature Coefficient

Applications

1. Battery Powered Systems
2. Instrumentation
3. Energy Management
4. Automotive
5. Precision Audio Components



Other data sheets are available within the file: AMS4040AL, AMS4040AM, AMS4040AN, AMS4040AS

AMS4040 Datasheet PDF Download


AMS4040 pdf



LM2596 Datasheet – Step-Down Voltage Regulator – National

Posted on by pinout

Part Number: LM2596

Function : SIMPLE SWITCHER Power Converter 150 kHz 3A Step-Down Voltage Regulator

Package: TO-220 and TO-263 Type

Manufacturer: National Semiconductor

Image:

LM2596

Description

The Regulators series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 3A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5V, 12V, and an adjustable output version.
Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation†, and a fixed-frequency oscillator.



Pinout:

LM2596 pinout
Other data sheets are available within the file: LM2596-3.3, LM2596S-ADJ

LM2596 Datasheet
