Part Number: SM5819
Function: 1.0 A, 40V, Surface Mount Schottky Barrier Rectifier
Package: DO-213AB type
Manufacturer: DC COMPONENTS
Pinouts:
Description
1. Ideal for surface mounted applications
2. Low leakage currentfor high efficiency
3. High current capability
Mechanical Data
1. Case: Molded plastic
2. Epoxy: UL 94V-0 rate flame retardant
3. Mounting position: Any
4. Weight: 0.12 gram
5. Terminals: Solder plated solderable per MIL-STD-202E, Method 208 guaranteed
6. Polarity: Color band denotes cathode end

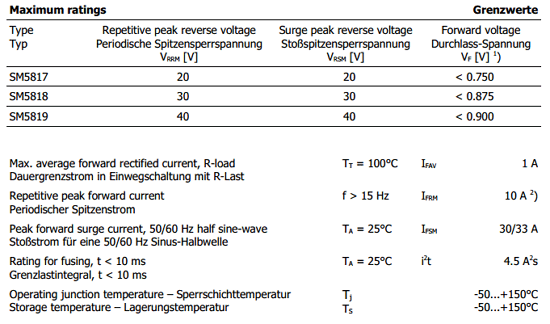

Other data sheets are available within the file: SM5817, SM5818
SM5819 Datasheet PDF Download
