TM1637 Datasheet PDF – IC for 4-digit 7-segment Display

Posted on by pinout

Part Number: TM1637

Function: Chip for driving 4-digit seven-segment display .

Package: DIP 20 / SOP 20 Type

Manufacturer: Titan Micro

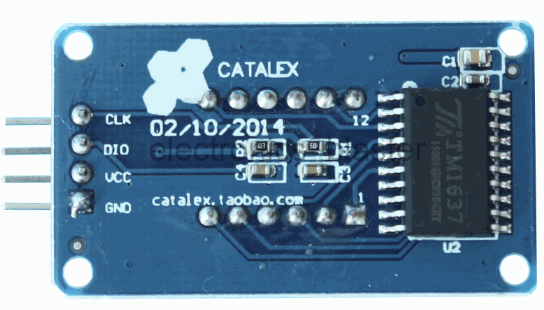

Image:

TM1637 Datasheet Segment IC

TM1637 image

Description

LED TM1637 is a scanning interface with a keyboard (light-emitting diode display) dedicated drive control circuit, the number of internally integrated MCU Digital interface, data latches, LED high voltage drive, keyboard scanning circuit.

Features

1. using power CMOS process

2. Display Mode (paragraph 8 × 6 bits), supports digital output common anode

3. key scan (8 × 2bit), enhanced anti-jamming key recognition circuit

4. luminance adjustment circuit (duty cycle 8 adjustable)

5. Two-wire serial interface (CLK, DIO)

6. Oscillation mode: Built-in RC oscillator (450KHz + 5%)

7. Built-in power-on reset circuit

8. Built-in automatic blanking circuit

Pinouts:

TM1637 Datasheet

The data transmission of TM1637 has an acknowledgment signal ACK. When the transmitted data is correct, on the falling edge of the eighth clock, an acknowledgment signal ACK will be generated inside the chip to pull the DIO pin low, and the DIO will be released after the end of the ninth clock. Mouth line.

TM1637 Datasheet PDF

TM1637_datasheet






Posts related to ‘ Segment ‘

Part number Description
NSM4005A RED, 5 Inch, Numeric Display Segment
TC5022BP BCD TO 7-Segment Decoder / Driver
F5461AH 4 Digit 7 Segment LED Display
SN7448 BCD-To-Seven-Segment Decoder / Driver
FJ5101BH Seven Segments Single Digit
WCN3-0040HO-A11 WCN3-0040HO-A11 PDF – Seven-segment Numeric Display
ACDA02-41PBWA Blue 7 Segment Display
7447 BCD to 7-Segment Decoder Driver
ELS-321HDB 0.3 inch Digit Segment – Everlight
5082-7656 LED Seven Segment Display

Related articles across the web

SH1106 PDF Datasheet – 132 X 64 Dot Matrix Segment Driver

Posted on by pinout

This post describes for the Segment Driver.

The Part Number is SH1106.

The function of this semiconductor is 132 X 64 Dot Matrix Segment/Common Driver.

The manufacturer of this part is SINO WEALTH.

See the preview image and the PDF file for more information.

1 page
SH1106 pdf datasheet

Description

The SH1106 is a single-chip CMOS OLED/PLED driver with controller for organic/polymer light emitting diode dot-matrix graphic display system. SH1106 consists of 132 segments, 64 commons that can support a maximum display resolution of 132 X 64. It is designed for Common Cathode type OLED panel. SH1106 embeds with contrast control, display RAM oscillator and efficient DC-DC converter, which reduces the number of external components and power consumption. This device is suitable for a wide range of compact portable applications, such as sub-display of mobile phone, calculator and MP3 player, etc.

Features

1. Support maximum 132 X 64 dot matrix panel

2. Embedded 132 X 64 bits SRAM

3. Operating voltage:

(1) Logic voltage supply: VDD1 = 1.65V – 3.5V

(2) DC-DC voltage supply: VDD2 = 3.0V – 4.2V

(3) OLED Operating voltage supply:

External VPP supply = 6.4V – 13.0V

Internal VPP generator = 6.4V – 9.0V

4. Maximum segment output current: 200μA

5. Maximum common sink current: 27mA

2 page
sh1106 arduino pinout

SH1106 PDF Datasheet
