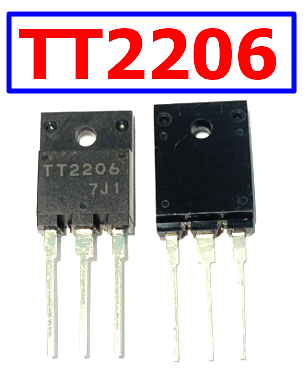

Part Number: TT2206
( Equivalent Sanyo 2SС5793 )
Package: TO-3P
Manufacturer: SANYO (Panasonic)
Pinouts:
Description
This is NPN Transistor. TT2206 transistor is a type of bipolar junction transistor (BJT) made from silicon, a semiconductor material. This transistor is designed for amplifying or switching electronic signals in various electronic circuits.
NPN Configuration
1. Emitter (N): The heavily doped N-type layer, which is the source of charge carriers (electrons) in the transistor.
2. Base (P): The thin P-type layer, which controls the flow of charge carriers between the emitter and collector.
3. Collector (N): The N-type layer, which collects the charge carriers that pass through the base-emitter junction.
Features
I(c) : 10A, V(cbo) : 1600V
1. High speed.
2. High breakdown voltage (Vcbo=1600V, Vceo=800V, Ic=10A, Pc=65W ).
3. High reliability (Adoption of HVP process).
4. Adoption of MBIT process.
Applications:
1. NPN Ultrahigh-Definition CRT Display Horizontal Deflection Output
Sanyo TT2206 replacement
The replacement is 2SС5793, TT2202, JL6920, 2SC5446.
Reference
TT2206 Datasheet PDF Download
Sanyo 2SC5793, Toshiba 2SC5446, Sanyo TT2202.
