TT2222 Datasheet PDF – Color TV Horizontal Deflection

Part Number: TT2222

Function: Transitor for TV, High Voltage Color Display Horizontal Deflection Output

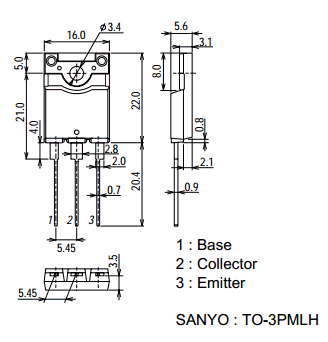

Package: TO-3PMLH Type

Manufacturer: Sanyo

TT2222 Datasheet

TT2222 datasheet


The TT2222 transistor is Color Display Horizontal Deflection IC.

A TV Horizontal Deflection IC is an integrated circuit that is specifically designed to control the horizontal deflection of the electron beam in a television. It is typically used in modern televisions that use a cathode ray tube (CRT) for display.

The TV Horizontal Deflection IC controls the deflection coil that moves the electron beam horizontally across the screen in a specific pattern, using a sawtooth wave signal to create the necessary magnetic field. The IC generates this signal and amplifies it to the appropriate level, ensuring that the electron beam moves across the screen at the correct speed and with the correct timing.

TT2222 transistor equivalent

ST2001HI :  1500 / 800V, 10A, 55W, tf = 0,2us [ ST2001HI Datasheet ]

KSD5703 :  1500 / 800V, 10A, 70W, tf = 0,1us

TT2202 : 1500 / 800V, 10A, 30W, tf = 0,3us

TT2140 :  1500 / 800V, 6A, 20W, tf = 0,3us [ TT2140 datasheet ]


Features :

• High speed.
• High breakdown voltage
• High reliability (Adoption of HVP process).
• Adoption of MBIT process.
• On-chip damper diode.



1. Color TV Horizontal Deflection Output Applications
