uPC1251 Datasheet, 1251 PDF – Dual OP AMP – NEC

Part Number: uPC1251, uPC1251C, 1251

Function: SINGLE POWER SUPPLY DUALOPERATIONAL AMPLIFIERS

Manufacturer: NEC ( Renesas )

Package : uPC1251C ( DIP 8Pin Type), uPC1251G2 ( SOP 8Pin Type )


uPC1251C image

uPC1251C

uPC1251 image

uPC1251G2

Description

The PC1251 and 358 are operational amplifiers developed for single power supply operation. It features output from V- (GND) level and low current consumption. In addition, it can operate with both positive and negative power supplies, and can be widely applied to various amplifier circuits.

There are μPC1251, uPC1251 for communication industry and μPC358 for general use depending on the set used and operating ambient temperature.

In addition, DC item sorting products are available as special products.
There are also quad-type μPC451 and 324 series products with the same circuit configuration.

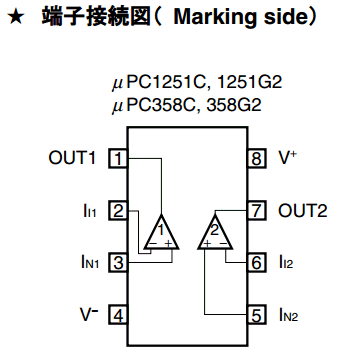

Pinout

uPC1251 pinout

Specifications:

uPC1251 Datasheet

uPC1251 Datasheet PDF

uPC1251C pdf

uPC1251C pdf
