YG862C10R Datasheet PDF – 100V, 10A, Diode, Rectifier

Part Number: YG862C10R

Function: High Voltage Schottky Barrier Diode(100V / 10A)

Package: TO-220F Type

Manufacturer: Fuji Electric

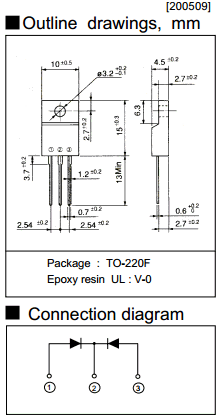

Pinouts:

YG862C10R datasheet

Description

This is 100V, 10A, Schottky Barrier Diode.

Features

1. Low IR
2. Low VF
3. Center tap connection

Applications:

1. High frequency operation
2. DC-DC converters
3. AC adapter

Absolute Maximum Ratings (Ta = 25°C)

1. Repetitive peak reverse voltage : Vrrm = 100V

2. Average output current : Io = 10 A

3. Operating junction temperature : Tj = 150 °C

4. Storage temperature: Tstg = -40 to +150 °C

YG862C10R Datasheet PDF Download


YG862C10R pdf

Other data sheets are available within the file: YG862C10
