2SA1943 Datasheet PDF – 230V, 15A, PNP Transistor, A1943

Part Number: 2SA1943, A1943

Function: (-) 230V, (-) 15A, PNP TRANSISTOR

Package: TO-3P Type

Manufacturer: Toshiba Semiconductor

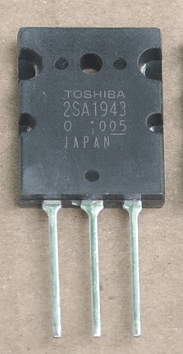

2SA1943 image

Description

This is -230V, -15A, Silicon PNP Triple Diffused Type Transistor.

Features

1. High collector voltage: VCEO= – 230 V (min)

2. Complementary to 2SC5200

3. Recommended for 100-W high-fidelity audio frequency amplifier output stage.

Pinout

2SA1943 Datasheet

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage: Vcbo = – 230 V

2. Collector to Emitter Voltage: Vceo = – 230 V

3. Emitter to Base Voltage: Vebo = – 5 V

4. Collector Current: Ic = – 15A

5. Total Dissipation : Pc = 150 W

6. Junction Temperature: Tj = 150°C

7. Storage Temperature: Tsg = -55 ~ +150°C

Applications:

1. POWER AMPLIFIER

Official Site : https://toshiba.semicon-storage.com/

2SA1943 Datasheet PDF
