7MBR10VKA060-50 Datasheet PDF – IGBT, 600V, 10A

7MBR10VKA060-50 IGBT learn more.

This is kind of a transistor. The IGBT is Insulated gate bipolar transistor.

Part Number: 7MBR10VKA060-50

Function: 600V 10A / Easy PIM

Package: Module type

Manufacturer: Fuji Electric

Image:
7MBR10VKA060-50 datasheet

Features

1. Low VCE(sat)
2. Compact Package
3. P.C.Board Mount Module
4. Converter Diode Bridge Dynamic Brake Circuit
5. RoHS compliant product

Information :

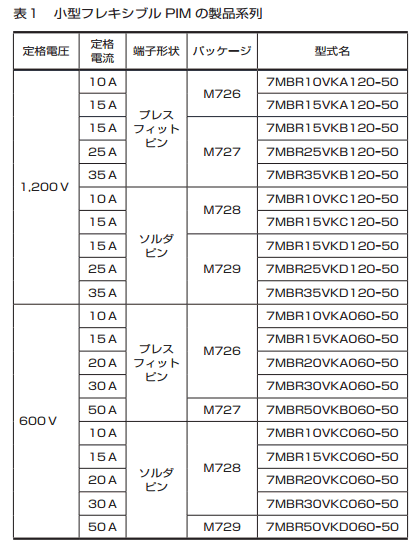

components

Absolute Maximum Ratings (at Tc=25°C unless otherwise specified)

[ Inverter ]

1. Collector-Emitter voltage : VCES = 600 V
2. Gate-Emitter voltage : VGES = ±20 V

Applications

1. Inverter for Motor Drive
2. AC and DC Servo Drive Amplifier
3. Uninterruptible Power Supply



7MBR10VKA060-50 Datasheet PDF Download


7MBR10VKA060-50 pdf
