B985 Datasheet PDF – 50V, 3A, PNP Transistor – Sanyo

Part Number: B985

Function: -50V, -3A, PNP Transistor

Package: TO-92 Type

Manufacturer: Sanyo Semicon Device

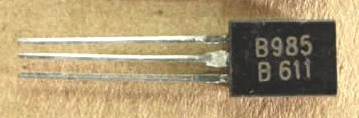

B985 image

Description

This is -50V, -3A, PNP Epitaxial Planar Silicon Transistor.

A PNP transistor is a type of bipolar junction transistor (BJT) that has a “positive-negative-positive” (PNP) configuration.

The term “PNP” refers to the polarities of the three regions in the transistor: the P-type base, the N-type collector, and the P-type emitter.

Features

1. Adoption of FBET, MBIT processes.

2. Low saturation voltage.

3. Large current capacity and wide ASO.

Pinout B985 pinout



Absolute Maximum Ratings ( Ta = 25°C )

1. Collector-to-Base Voltage: Vcbo = -60V

2. Collector-to-Emitter Voltage: Vceo = -50V

3. Emitter-to-Base Voltage: Vebo = -6V

4. Collector Current: Ic = -3A

5. Collector Current ( Pulse ) : Icp = -6A

6. Collector Dissipation : Pc = 1W

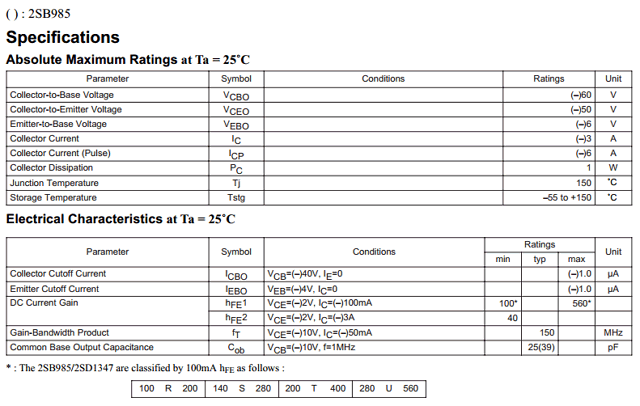

B985 Datasheet

Applications:

1. Power supplies, relay drivers,

2. Lamp drivers, electrical equipment.

3. Large-Current Driving Applications



B985 Datasheet PDF
