CD3699GP Datasheet PDF – CD3699, Sound Processor – Semico

Part Number: CD3699GP

Function: Echo / Surround Sound Processor circuit

Package: DIP 16, SOP 16 Pin Type

Manufacturer: Semico

Image:

CD3699GP

Description

CD3699 is an echo / surround sound processor circuit applied to an echo sound effects and surround sound audio processing equipment.

Limit parameter :

1. Extreme working voltage : -0.3 ~ 6V
2. Working temperature : -25 ~ 70°C
3. Extreme power consumption : 1.7W
4. Storage temperature : -40 ~ 125°C

Circuits

CD3699GP Circuit Pinout

Features

1. low distortion
2. high signal to noise ratio
3. Simple peripheral lines
4. Auto reset function
5. Echo delay time can be easily adjusted
6. You can select the echo mode. Main tone Echo output together or surround sound mode Only echo output

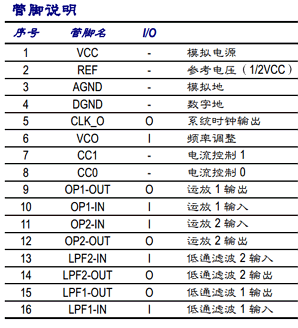

Pinout

CD3699GP Datasheet

Other data sheets are available within the file: CD3699

CD3699GP Datasheet PDF Download


CD3699GP pdf
