Part Number: G4PC50UD, IRG4PC50UD
Function : 600V, 27A, IGBT
Package: TO-247AC Type
Manufacturer: International Rectifier
Description
This is 600V, 27A, UltraFast CoPack IGBT. The IGBT is insulated-gate bipolar transistor.
Features
1. UltraFast: Optimized for high operating frequencies 8-40 kHz in hard switching, >200 kHz in resonant mode
2. Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than Generation 3
4. IGBT co-packaged with HEXFREDTM ultrafast, ultra-soft-recovery anti-parallel diodes for use in bridge configurations

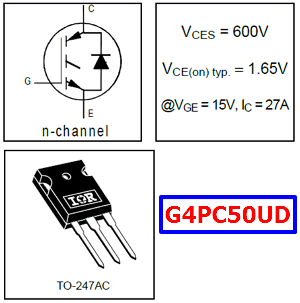

Pinout
Benefits
1. Generation 4 IGBT’s offer highest efficiencies available
2. IGBT’s optimized for specific application conditions
3. HEXFRED diodes optimized for performance with IGBT’s . Minimized recovery characteristics require less/no snubbing
4. Designed to be a “drop-in” replacement for equivalent industry-standard Generation 3 IR IGBT’s
Absolute Maximum Ratings (Ta = 25°C)
1. Collector to emitter voltage: Vces = 600 V
2. Gate to emitter voltage: Vges = ± 20 V
3. Collector current : Ic = 27 A (Tc = 100°C)
4. Maximum Power dissipation : Pc = 200 W (Tc = 25°C)
5. Operating Junction temperature : Tj = 150 °C
6. Storage temperature: Tstg = -55 to +150 °C
G4PC50UD Datasheet PDF
