Part Number: K900, 2SK900
Description
250V, 12A, N-Channel Silicon Power MOSFET
Package: TO-220AB
Manufacturer: Fuji Electric
Description
This is N-Channel Silicon Power MOSFET.
Features
1. High speed switching
2. Low on-resistance
3. No secondary breakdown
4. Low driving power

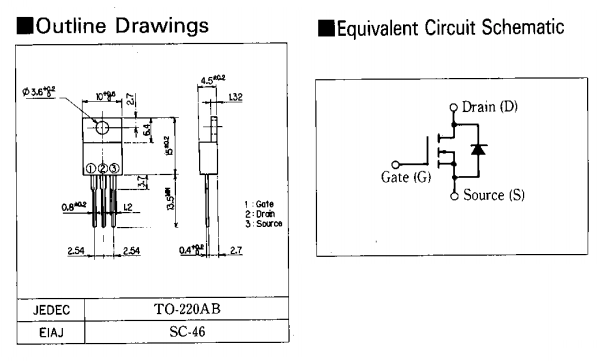

Pinout
Applications
1. UPS
2. DC-DC Converters
3. General purpose power amplifier
Absolute maximum ratings ( Tc=25°C )
1. Drain-source voltage : Vdss = 250 V
2. Continuous drain current : Id = 12 A
3. Pulsed drain current : Id(puls) = 48 A
4. Max. Power Dissipation: Pd = 80 W
5. Junction Temperature: Tj = 150°C
6. Storage Temperature: Tsg = -55 ~ +150°C
K900 Datasheet
