Part Number: LVB14A

Function: Transient Voltage Suppressor, Diode, Rectifier

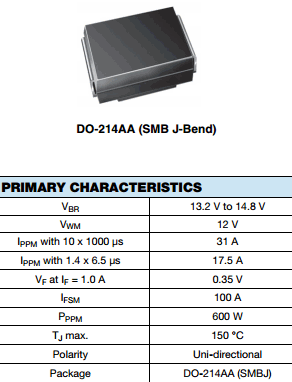

Package: DO-214AA ( SMB J-Bend ) Type

Manufacturer: Vishay Semiconductors

LVB14A datasheet


This is Low VFSurface Mount TRANSZORB Transient Voltage Suppressor.



1. Uni-directional polarity only

2. Peak pulse power: 600 W (10/1000 μs)

3. Ideal for automated placement

4. Low forward voltage

5. Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

6. Material categorization : For definitions of compliance

Absolute maximum ratings ( Ta=25°C )

1. Device marking code : L14

2. Peak power pulse current with a 10/1000 μs waveform : IPPM = 31 A

3. Peak pulse current with a 1.4/6.5 μs waveform : IPPM = 17.5 A

4. Peak forward surge current 8.3 ms single half sine-wave : IFSM =100 A

5. Power dissipation on infinite heatsink, TL = 50 °C : PD = 5 W

6. Operating junction and storage temperature range : TJ, TSTG = -65 to +150 °C

Typical Applications:

Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs sensor units specifically for protecting 12 V supplied sensitive equipment against transient overvoltages.

Other data sheets are available within the file: LVB14AM3/52, LVB14AM3/5B
