MDD1051 Datasheet PDF – 150V, 28A, N-Channel MOSFET

This is one of the types of MOSFETs and is a kind of transistor.

Part Number: MDD1051

Function: 150V, 28A, N-channel MOSFET

Package: D-PAK ( TO-252 ) Type

Manufacturer: MagnaChip Semiconductor

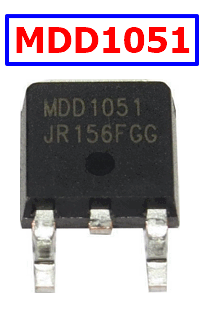

MDD1051 mosfet datasheet

Description

The MDD1051 uses advanced MagnaChip’s MOSFET Technology, which provides high performance in on-state resistance, fast switching performance and excellent quality. MDD1051 is suitable device for Synchronous Rectification For Server and general purpose applications.

Pinouts:

MDD1051 transistor pinout

Features

1. VDS = 150V

2. ID = 28A @VGS = 10V

3. RDS(ON) (MAX) < 46.0mΩ @VGS = 10V

4. 100% UIL Tested

5. 100% Rg Tested

Absolute Maximum Ratings (Tc = 25°C) :

1. Drain to source voltage: VDSS = 150 V

2. Gate to source voltage: VGSS = ± 20 V

3. Drain current: ID = 28 A

4. Drain power dissipation : PD = 70 W

5. Single pulse avalanche energy : Eas = 50 mJ

6. Channel temperature: Tch = -55 to +150 °C

7. Storage temperature: Tstg = -55 to +150 °C

Other data sheets are available within the file: MDD-1051
