MPSU56 Datasheet – 80V, 2A, PNP Transistor, Amplifier ( PDF )

Part Number: MPSU56

Function: 80V, 2A, PNP Silicon Amplifier Transistor

Package: Case 152-02 Type

Manufacturer: Motorola => Freescale

Image and Pinouts:

MPSU56 datasheet



Description

The MPSU56 designed for general-purpose, high-voltage amplifer and drvier applications.



Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage: Vcbo = 80 V

2. Collector to Emitter Voltage: Vceo = 80 V

3. Emitter to Base Voltage: Vebo = 4 V

4. Collector Current: Ic = 2 A

5. Collector Dissipation : Pc = 1 W

6. Junction Temperature: Tj = 150°C

7. Storage Temperature: Tsg = -55 ~ +150°C



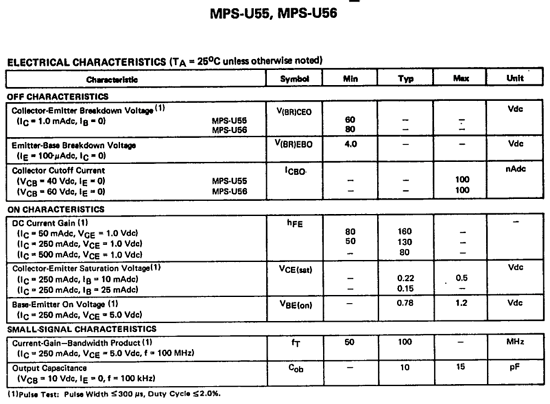

components

components

Other data sheets are available within the file: MPSU-56, MPSU-55, MPSU55
