P6NK90ZFP Datasheet PDF – 900V, 5.8A, N-ch, MOSFET

Part Number: STP6NK90ZFP, Marking : P6NK90ZFP

Function: N-Channel MOSFET, 900V, 5.8A

Package: TO-220FP Type

Manufacturer: STMicroelectronics

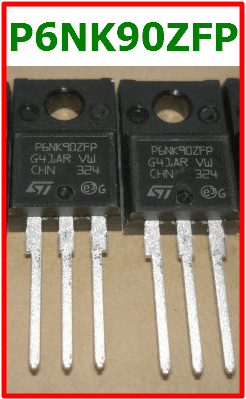

P6NK90ZFP mosfet


This is N-channel Power MOSFET, 900V, 1.56 Ohm, 5.8A.

The SuperMESH series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Such series complements ST full range of high voltage MOSFETs.



P6NK90ZFP datasheet pinout



1. Extremely high dv/dt capability
2. 100% avalanche tested
3. Gate charge minimized
4. Very low intrinsic capacitances
5. Very good manufacturing repeatability

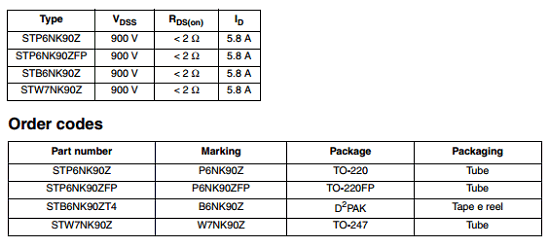

Marking Information

P6NK90ZFP marking information

P6NK90ZFP Datasheet

P6NK90Z pdf


Other data sheets are available within the file: B6NK90Z, P6NK90Z, STB6NK90Z, STP6NK90Z
