P7NA60 Datasheet PDF – 600V, N-Channel MOSFET

Part Number: P7NA60

Function: 600V, N-Channel Enhancement Mode Fast Power MOSFET

Package: TO-220, ISOWATT220 Type

Manufacturer: STMicroelectronics

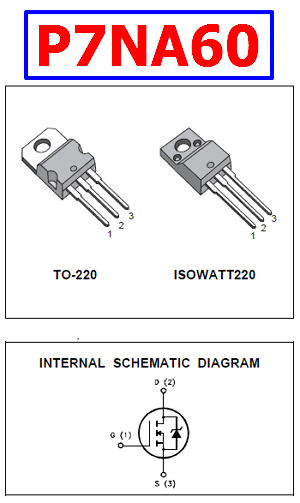

Image and Pinouts:

P7NA60 datasheet pinout

Description

This series of POWER MOSFETS represents the most advanced high voltage technology. The optimized cell layout coupled with a new proprietary edge termination concur to give the device low RDS(on)and gate charge, unequalled ruggedness and superior switching performance.

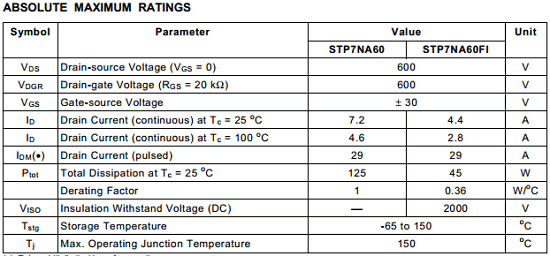

components

Features

1. TYPICAL RDS(on) = 0.92 W
2. ± 30V GATE TO SOURCE VOLTAGE RATING
3. 100% AVALANCHE TESTED
4. REPETITIVE AVALANCHE DATA AT 100°C
5. LOW INTRINSIC CAPACITANCES
6. GATE GHARGE MINIMIZED
7. REDUCED THRESHOLD VOLTAGE SPREAD

Applications

1. HIGH CURRENT, HIGH SPEED SWITCHING
2. SWITCH MODE POWER SUPPLIES (SMPS)
3. DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE

Other data sheets are available within the file: P7NA60FI, STP7NA60, STP7NA60FI
