STS7C4F30L Datasheet PDF – 30V, Power MOSFET – ST

Part Number: STS7C4F30L

Function: 30V, STripFET POWER MOSFET

Package: SO-8 Pin type

Manufacturer: STMicroelectronics

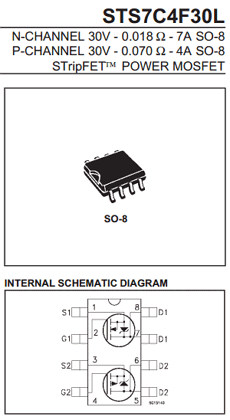

Image and Pinouts:

STS7C4F30L datasheet



Description

This Power MOSFET is the latest development of STMicroelectronis unique ”Single Feature Size strip-based process. The resulting transistor shows extremely high packing density for low on resistance, rugged avalanche characteristics and less critical alignment steps therefore a remark able manufacturing reproducibility.

Features

1. TYPICAL RDS(on) (N-Channel) = 0.018Ω

2. TYPICAL RDS(on) (P-Channel) = 0.070Ω

3. STANDARD OUTLINE FOR EASY AUTOMATED SURFACE MOUNT ASSEMBLY

4. LOW THRESHOLD DRIVE

Applications:

1. DC/DC CONVERTERS

2. BATTERY MANAGEMENT IN NOMADIC EQUIPMENT

3. POWER MANAGEMENT IN CELLULAR PHONES

Other data sheets are available within the file: S7C4F30L

STS7C4F30L Datasheet PDF Download


STS7C4F30L pdf
