YSL-R596CR3G4B5C-C10 Datasheet PDF – Triple Color LED

Part Number: YSL-R596CR3G4B5C-C10

Function: RED/GREEN/BLUE Triple Color LED

Manufacturer: Young SUN LED Technology

Image and Pinouts:

YSL-R596CR3G4B5C-C10 datasheet



Description

1. All dimension are in mm, tolerance is 0.2mm unless otherwise noted
2. An epoxy meniscus may extend about 1.5mm down the leads.
3. Burr around bottom of epoxy may be 0.5mm Maximum

Applications

1. Moving Message Display
2. Banking Board
3. Digital Display
4. Full Color Display
5. Score Boards

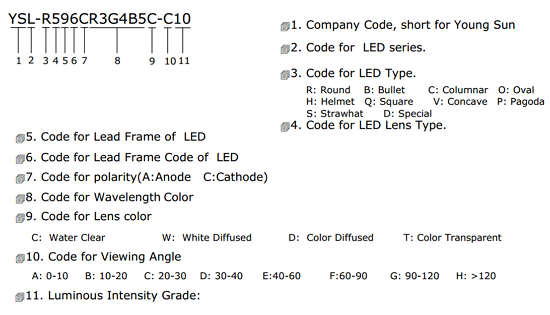

Ordering Information

components



YSL-R596CR3G4B5C-C10 Datasheet PDF Download


YSL-R596CR3G4B5C-C10 pdf

Other data sheets are available within the file: YSLR596CR3G4B5CC10
