Z51F0410 Datasheet PDF – 8-Bit Microcontroller

Part Number: Z51F0410

Function: Z8051 Series 8-Bit Microcontroller

Package: SSOP 10 Pin type

Manufacturer: IXYS CORPORATION

Image:

Z51F0410 datasheet



Description

The Z51F0410 MCU is advanced CMOS 8-bit microcontroller with 4K bytes of Flash.

This is powerful microcontroller which provides a highly flexible and cost effective solution to many embedded control applications. This provides the following features : 4K bytes of Flash, 256 bytes of RAM, 256 bytes of Data EEPROM, general purpose I/O, 8/16-bit timer/counter, watchdog timer, watch timer, USART, BUZZER, I2C, on-chip POR, 12-bit A/D converter, analog comparator, 10-bit PWM output, on-chip oscillator and clock circuitry. The Z51F0410 MCU also supports power saving modes to reduce power consumption.

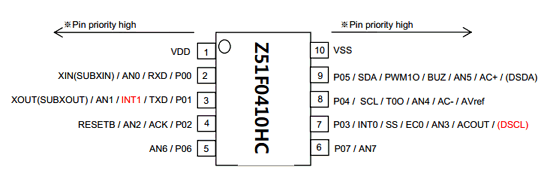

Pinouts:

components

Applications:

1. 4K Bytes On-chip Flash

2. 256 Bytes Data EEPROM

3. Watch Dog Timer

4. Watch Timer

5. USART

6. BUZZER

7. Analog Comparator

8. 12 Bit A/D Converter

Z51F0410 Datasheet PDF Download


Z51F0410 pdf

Other data sheets are available within the file: Z51FO410, Z51F0410HCX
