Part Number: 74LS266
Function: QUADRUPLE 2-INPUT EXCLUSIVE-NOR GATES WITH OPEN-COLLECTOR OUTPUTS
Package: DIP, SOP 14 Pin or PLCC 20 Pin Type
Manufacturer: Texas Instruments

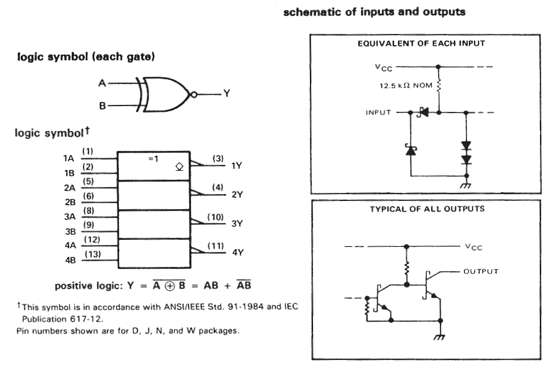

Image and Pinouts:
Description
The 74LS266 is comprised of four independent 2-input exclusive-NOR gates with open-collector outputs. The open-collector outputs permit tying outputs together for multiple-bit comparisions.
Features
1. Can be used as a 4-Bit digital comparator
2. Input Clamping diodes simplify system design
3. Fully compatible with most TTL Circuits.
Block Diagram
Other data sheets are available within the file: 54LS266, 74266, 74LS266D, 74LS266N
