K5A50D Datasheet – N-ch, MOSFET, 500V, TK5A50D – Toshiba

This is one of the types of MOSFETs and is a kind of transistor.

Part Number: K5A50D, TK5A50D

Function: 500V, 5A, Silicon N Channel MOSFET

Package: TO220F Type

Manufacturer: Toshiba

Image :
TK5A50D datasheet

Description

This is 500V, 5A, Silicon N Channel MOS Type Field Effect Transistor.

Search Part number : K5A50D ->  Correct Part number : TK5A50D



Features

1. Low drain-source ON-resistance: RDS (ON)= 1.3 Ω(typ.)

2. High forward transfer admittance: ⎪Yfs⎪= 3.0 S (typ.)

3. Low leakage current: IDSS= 10 μA (max) (VDS= 500 V)

4. Enhancement mode: Vth= 2.4 to 4.4 V (VDS= 10 V, ID= 1 mA)



Pinout

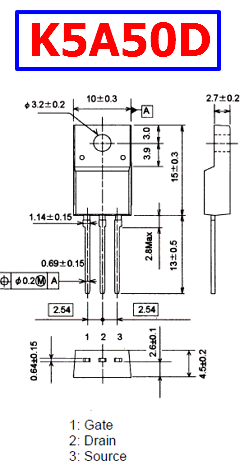

k5a50d-datasheet-pinout

Absolute Maximum Ratings (Ta = 25°C)

1. Drain to source voltage: VDSS = 500 V

2. Gate to source voltage: VGSS = ± 30 V

3. Drain current: ID = 5 A

4. Drain Power Dissipation: Pd = 35 W

5. Channel temperature: Tch = 150 °C

6. Storage temperature: Tstg = -55 to +150 °C

K5A50D Datasheet PDF

TK5A50D pdf




Other data sheets are available within the file: K5A500, TK5A500, TK5A50D
