60R580P Datasheet – 600V, 8A, N-ch, MOSFET – Magnachip

This is one of the types of MOSFETs and is a kind of transistor.

Part Number: 60R580P, MMF60R580P

Function: 600V, 0.58 Ohm, N-channel MOSFET

Package: TO-220F Type

The manufacturers of this product is MagnaChip Semiconductor.

See the preview image and the PDF file for more information.

Image:

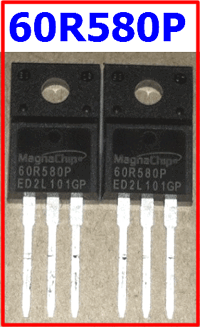

60R580P mosfet

Description

The 60R580P is power MOSFET using magnachip’s advanced super junction technology that can realize very low on-resistance and gate charge. It will provide much high efficiency by using optimized charge coupling technology. These user friendly devices give an advantage of Low EMI to designers as well as low switching loss.

An N-channel MOSFET (Metal Oxide Semiconductor Field Effect Transistor) is a type of field effect transistor (FET) that uses an N-type semiconductor material as the conducting channel to control the flow of current.

When a positive voltage is applied to the gate terminal, it attracts electrons to the channel, creating an inversion layer and allowing current to flow between the source and drain terminals.

60R580P Pinout

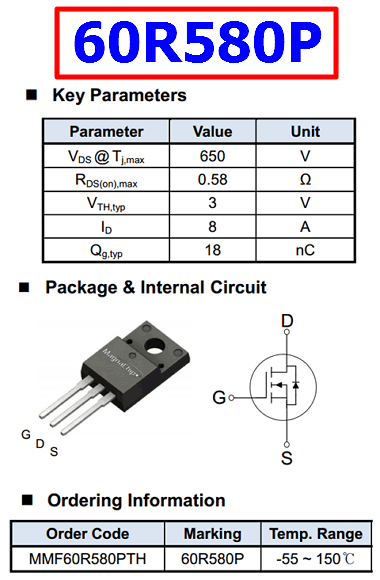

60R580P datasheet pinout

Features

1. Low Power Loss by High Speed Switching and Low On-Resistance

2. 100% Avalanche Tested

3. Green Package – Pb Free Plating, Halogen Free



Absolute Maximum Ratings (Ta = 25°C)

1. Drain to source voltage: VDSS = 600 V

2. Gate to source voltage: VGSS = ± 30 V

3. Drain current: ID = 8 A

4. Power Dissipation: Pd = 70 W

5. Channel temperature: Tch = 150 °C

6. Storage temperature: Tstg = -55 to +150 °C



Applications:

1. PFC Power Supply Stages

2. Switching Applications

3. Adapter

4. Motor Control

5. DC – DC Converter
