STRS6307 Datasheet – Switching Regulator Hybrid IC – Sanken

Part Number: STRS6307

Function: Switching Regulator, 15V, 6A, 100W.

Pakcage : SIP 9 Pin Type

Manufacturer: Sanken Electric co.,ltd.

Image :

STRS6307

STRS-6307 Image

Description

Switching Regulator Hybrid IC

Features

1. Hybrid IC incorporated with a 3-layer Silicon Transistor
2. Construction : Plastic Mold Package

Pinouts:
STRS6307 Pinout

Features

1. Input voltage : 15V
2. Output current : 6A
3. Output power : 100W

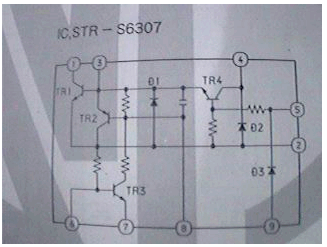

Block Diagram

STRS6307 Datasheet

Application:

Direct control, R.C.C type Switching Regulator featuring Drive Circuit and the Over Current Protection.

( Using Photo Coupler as primary / secondary isolation element. )

Other data sheets are available within the file: STRS-6307

STRS6307 Datasheet

STRS6307 pdf



STRS6301 Datasheet
