YX801 Datasheet PDF – Solar LED Driver – YX-801 Circuit

Part Number: YX801

Function: Solar LED driver

Package: TO-94-4 Pin Type

Manufactueres : Shiningic

YX801 image

Description

The YX801 is two 1.25V charge current or one Lights in a stable manner LED in the pond. Light of the sun Saw And to charge the rechargeable battery and a battery hit the error, The point the LED in the charging battery is charged to at night Light, automatic switching.

Solar lawn chip LED drivers are typically weatherproof and designed to withstand outdoor conditions. They often come with built-in charging controllers to manage the charging of the batteries from the solar panels. Some models may also offer wireless connectivity options, allowing remote control and monitoring of the lighting system.

When installing a solar lawn chip LED driver, it is essential to consider the power requirements of the LED lights and select a compatible driver with the appropriate voltage and current ratings. Additionally, the capacity of the battery and the size of the solar panel should be appropriately matched to ensure sufficient energy storage and efficient charging.

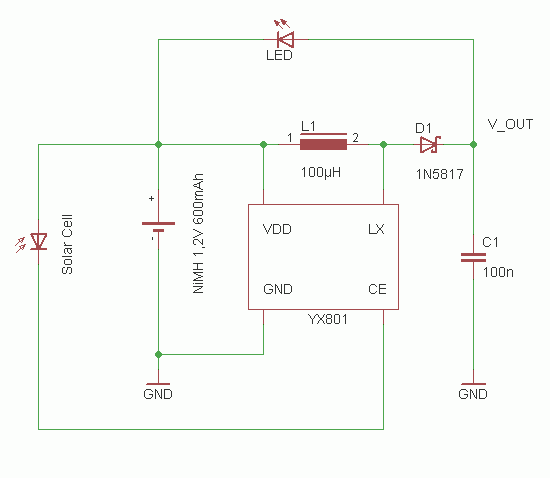

Circuit

YX801 datasheet

Pin 1 attached to the solar panel +ve
Pin 2 attached to the solar panel -ve
Pin 3 attached to battery -ve and one leg of the LED
Pin 4 attahed to battery +ve via the other leg of the LED and a resistor.

yx801 datasheet pinout

Ordering Informations :

1. YX801 : Solar Lawn Light Controller, Shiningic

2. YX8016 : Solar lawn light controller, Shiningic

3. YX8018 : Solar LED driver, Shiningic

4. YX8019 : Solar LED driver

5. YX8022 : Batteries Solar Lawn Controller, Huajing Electronics

6. YX8051 : Two-cell solar lawn light controller, Shiningic



Reference Site

1. https://forums.parallax.com/discussion/132034/yx801-ic-what-does-it-do

2. www.datasheetcafe.com/yx8018-datasheet-pdf/



YX-801 datasheet refer to YX8018 datasheet
