Part Number: KTA1282N, TA1282N
Function: PNP Transistor (high Current)
Package: TO-92 Type
Manufacturer: KEC

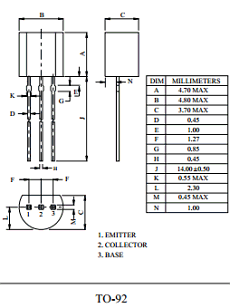

Image and Pinouts:
Description
KTA1282N is 30V, 2A, Epitaxial Planar PNP Transistor.
Features
1. Complementary to KTC3210.
Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage: Vcbo = – 30 V
2. Collector to Emitter Voltage: Vceo = – 30 V
3. Emitter to Base Voltage: Vebo = – 5 V
4. Collector Current: Ic = – 2 A
5. Collector Dissipation : Pc = 625 mW
6. Junction Temperature: Tj = 150°C
7. Storage Temperature: Tsg = -55 ~ +150°C
Applications:
1. HIGH CURRENT
KTA1282N Datasheet PDF Download
Other data sheets are available within the file: KTA1282, TA1282N
