AN17820B Datasheet – Audio Power Amplifier – Panasonic

Part Number: AN17820B

Function: Silicon Monolithic Bipolar IC

Manufacturer: Panasonic Corporation

Image:

AN17820B datasheet

Description

The device is monolithic intergrated circuit designed for 7.5W x 2-ch (8Ω) output audio power amplifer. It is dual channel BTL IC suitable for stereo operation in TV application.

1. BTL 7.5W x 2ch Power Amplifier with Standby Function and Volume Function

2. SIL-12 Pin Plastic Package (Power Type with Fin)

Block Diagram

components

Pinouts

components

Other data sheets are available within the file: AN17820

AN17820B Datasheet PDF Download

AN17820B pdf

Posts related to ‘ Audio Amplifier

Part number Description
NS4263 3W Stereo Class AB Audio Amplifier
TDA7293 TDA7293 – 120V – 100W DMOS AUDIO AMPLIFIER WITH MUTE/ST-BY
PAM8403 3W Class-D Stereo Audio Amplifier – PAM
NS4263 3W Stereo AB Audio Amplifier – NSIWAY
NS4358 Sound Digital Audio Amplifier – NSIWAY
TDA8947J 4-Ch Audio Amplifier
TC8002D 3W audio amplifier IC
TDA2030 14W HI-FI AUDIO AMPLIFIER
SJ8207A 4.6W Dual Audio Amplifier – SJ
TDA-2030 TDA-2030 – 14W Hi-Fi AUDIO AMPLIFIER





AN17821A Datasheet PDF -BTL 5.0 W x 2-ch Power Amplifier

Part Number: AN17821A

Function: BTL 5.0 W ×2-channel power amplifier

Package: SIL 12-pin plastic package (power type with fin)

Manufacturer: Panasonic Corporation

Images:

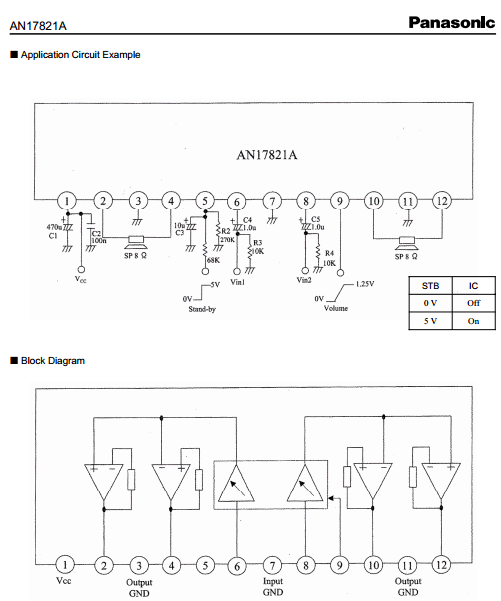

AN17821A datasheet

Description

BTL 5.0W x 2ch Power Amplifier with Standby Function and Volume Function

Absolute Maximum Ratings

1. Storage Temperature : Tstg = -55 ~ +150 °C
2. Operating Ambient Temperature : Tstg = -25 ~ +70 °C
3. Operating Constant Acceleration : Gopr = 9,810 m/s²
4. Operating Shock : Sopr = 4,900 m/s²
5. Supply Voltage : Vcc = 14.4 V
6. Supply Current: Icc = 2.0 A
7. Power Dissipation: Pd = 1.92 W ( Ta = 70 °C )

Pinouts

components

Applications

Low Frequency Amplifier



Other data sheets are available within the file: AN17821



AN17821A Datasheet PDF Download

AN17821A pdf
